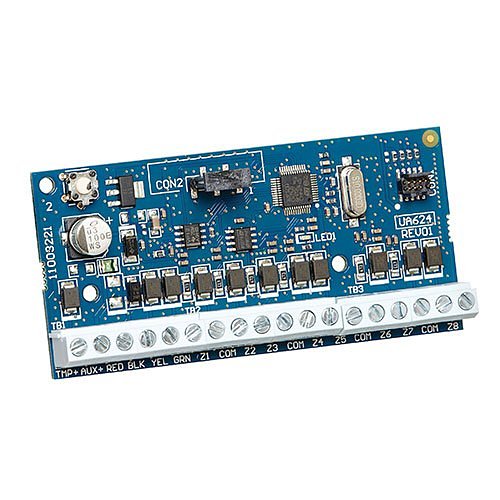

DSC PowerSeries Pro Neo Zone Expander Module 8 | HSM2108 | UPC: 80006934

MPN: HSM2108  VTC ID: DSC-HSM2108

The DSC PowerSeries Pro Neo Zone Expander Module 8 is a hardwired accessory that enables the expansion of your alarm system. With support for no end-of-line, single end-of-line, and double end-of-line zone loops (5,600 Ohm resistors), this module allows for the connection of up to 15 modules per system. It also features a tamper contact input and fully supervised expansion for constant communication. Measuring 45mm x 92mm (1.12/16” x 3 5/8”) and requiring a maximum of 40 mA, this module is a reliable and convenient addition to your home security setup. DSC HSM2108

• Supports no end-of-line, single end-of-line and double end-of-line zone loops. (5,600 Ohms resistors)
• Connect up to 15 modules per system
• Tamper contact input
• Dimensions: 45mm x 92mm (1.12/16” x 3 5/8”)
• 40 mA (Max)
• 12 VDC Nominal
• Fully supervised expansion ensures constant communication with PowerSeries Neo control panel
• Simple wiring can be home run, daisy chained or tee-tapped anywhere on the Corbus
• Fully encrypted communications back to PowerSeries Neo

UPC: 80006934
