Vision Tech Communications

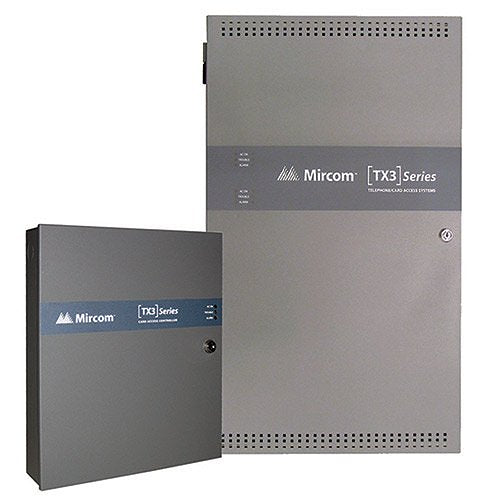

Mircom 4-Door Card Access Controller | TX3-CX-4-A | UPC: 778346019009

Mircom 4-Door Card Access Controller | TX3-CX-4-A | UPC: 778346019009

Regular price $1,999.99 CAD
Regular price Sale price $1,999.99 CAD
Sale Sold out
Free shipping in Canada

MPN: TX3-CX-4-A  VTC ID: MIRCOM-TX3CX4A

The Mircom 4-Door Card Access Controller TX3-CX-4-A is a reliable and efficient way to control access to your building. With two 2-door controller boards housed in one unit, this system provides secure access to up to four doors. It is easy to install and use, and comes with a variety of features such as programmable access levels and time zones. The TX3-CX-4-A is a versatile solution for any business or organization that requires secure access control.

  • A hybrid architecture that combines the best of TCP/IP and RS-485. All panels can be networked via RS-485 or TCP/IP.
  • Each 2 door controller board can provide up to 8 programmable outputs; 6 are Form C contacts (normally open/normally closed), two powered outputs provide 12 VDC power for up to 1 ampere of current combined - The number of inputs and outputs multiply as more 2 door controller boards are added - Providing up to 32 supervised inputs + 32 programmable outputs where 24 of them are form C relay a
  • 8 programmable outputs; 6 are Form C contacts (normally open/normally closed), two provide 12 VDC power for up to 1 ampere of current combined
  • Supports all credential formats such as clamshell cards, graphic cards, key tags and wafers (ordered separately)
  • Optional vehicular control using dual technology wireless transmitters that can have a built-in proximity coil (wafer)
  • Optional vehicular control using dual technology wireless transmitters that can have a built-in proximity coil (wafer)
  • A variety of options to remotely manage the TX3 access panel to fit the site requirements. A modem, a TCP/IP module or use a local USB extender to a PC
  • Compatible with any Wiegand reader technology including Mifare, biometric, proximity and iClass
  • Elevator Control for up to 96 floors to restrict users to specific floors

UPC: 778346019009
